Gras AL0030

Testauskaappi akustisiin mittauksiin
AL0030

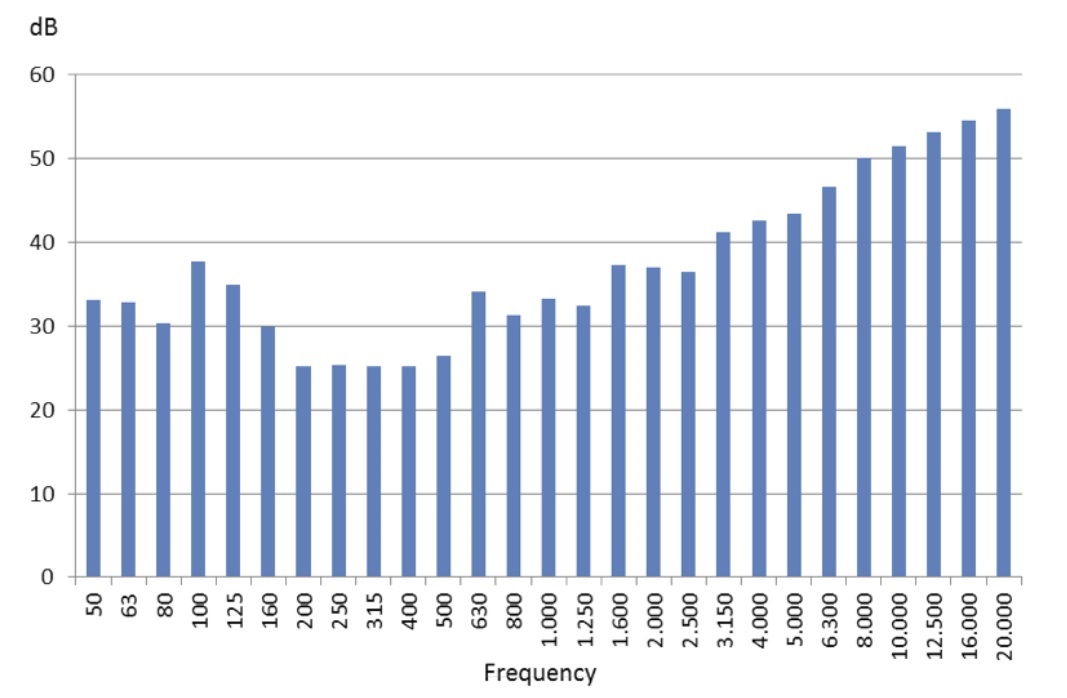

AL0030_vaimennus

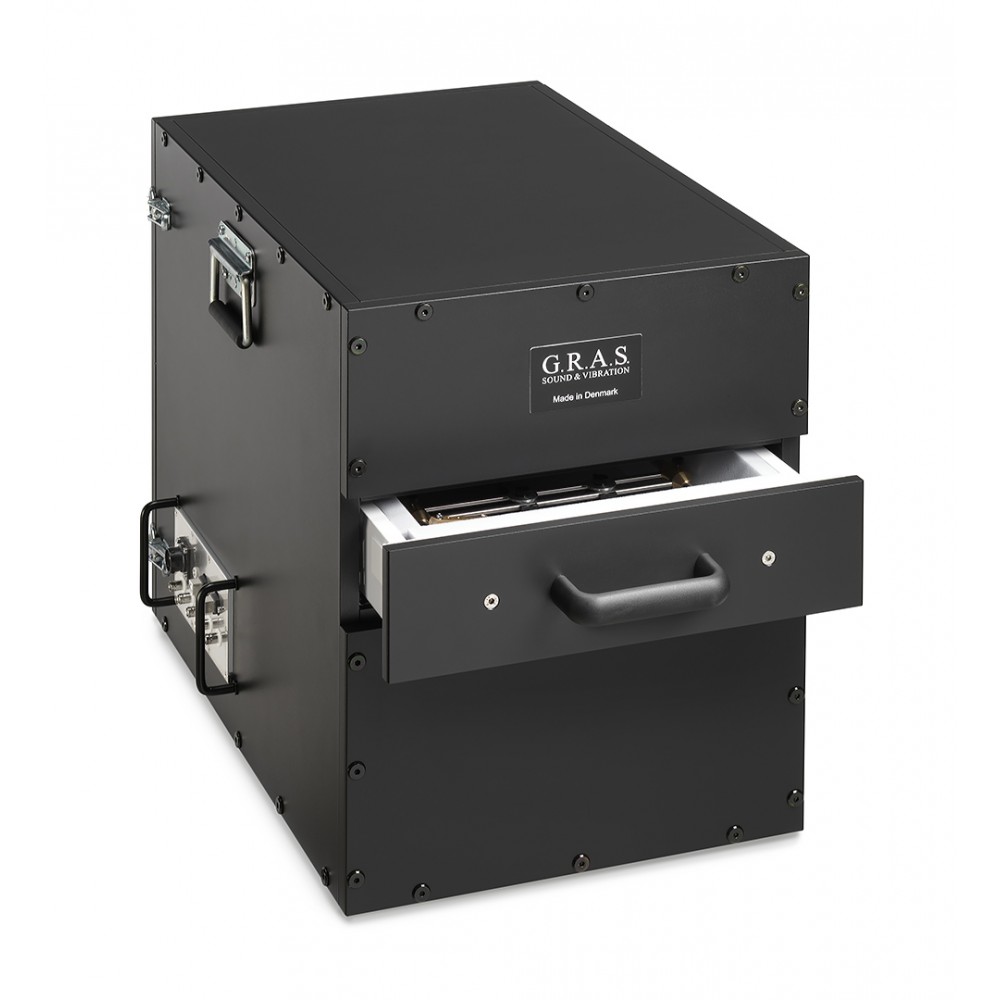

GRAS AL0030 Testauskaappi (Production Line Acoustic Test Chamber) on kaiuton testauskaappi akustisiin testauksiin tuotantolinjalla tai tuotekehitysprojekteissa.

Se sopii erityisen hyvin mobiililaitteille, kuten kännyköille, bluetoothkaiuttimille ja muille kompakteille akustiikkalaitteille. Jokainen toimitettu kaappi räätälöidään valmistajan toimesta sopivilla varusteilla asiakkaan tarpeen mukaan..

It is built from medium density fibre board lined with acoustic damping material. A large opening at the back of the chamber allows easy access to the chamber for configuring the test setup. The chamber has shock and vibration absorbing feet that prevent vibration from the outside from influencing the measurements.

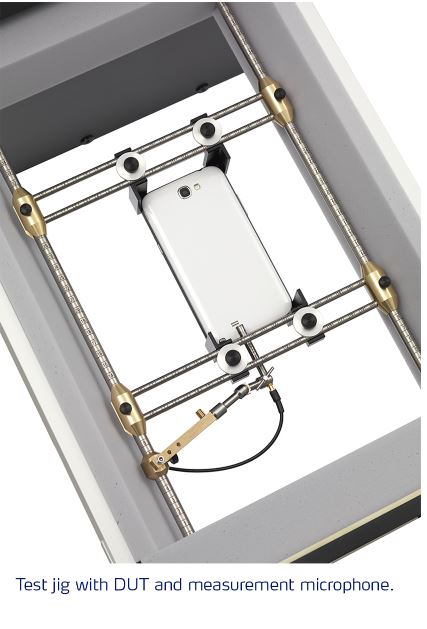

It has a drawer with multi-adjustable holders for easy and safe mounting and removal of the Device Under Test. It can hold small and medium sized portable devices up to 300 x 200 mm (12 x 8 inches).

The test chamber has 4 fixing points for microphones and sound source, 2 at the top and 2 at the bottom panel. Holders for a total of 4 microphones and/or sound sources can be mounted at these fixing points. Additionally, a microphone can be attached to the drawer.

A connector panel with 4 BNC connectors, 2 USB, and 2 Mini DIN connectors provides connections to external instruments.

A Flexible and Configurable Test Platform

 AL0030 provides a flexible test platform that can be configured to suit specific needs.

  • The basic configuration includes user selectable accessories for immediate acoustic testing.
  • Additionally, the test chamber can be fittet with a sound source and an artifial ear.
  • If you have needs that are not covered by these options, we can customize it to suit your specific needs. Contact (your local) GRAS (representative) to initiate the process.

As standard the AL0030 comes with a basic suite of accessories needed for audio response testing. The following are included:

  • The Acoustic Test Chamber
  • Choice of one microphone set
  • Choice of a set of  DUT holders
  • Choice of one microphone holder
  • One standard input connector panel
  • One cable for the microphone set

The connector plate can be ordered blind for customization.

Included and optional accessories for AL0030 are listed under the tab Ordering info.

Valmistaja:
GRAS
Tuotenumero AL0030
